Memorex MT1196A Upgrade & Service Menu

Post by The Robman »

I have uploaded an upgrade for a Memorex MT1196A "Closed Caption Decoder" TV set from 1999 (which just happened to be one of the TV sets in our vacation unit).

http://www.hifi-remote.com/forums/dload ... le_id=2816

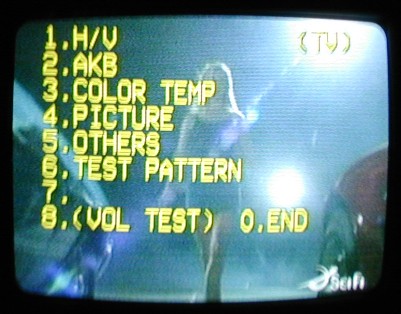

This upgrade includes the code to access the service menu. The following screen shots show you the menu options available when the SM is accessed:

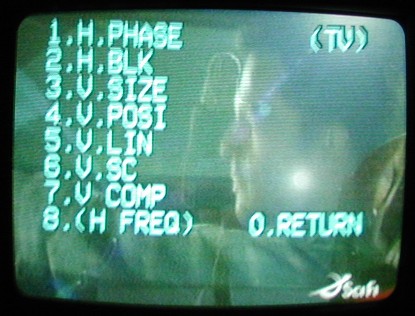

1. H/V (Horizontal / Vertical)

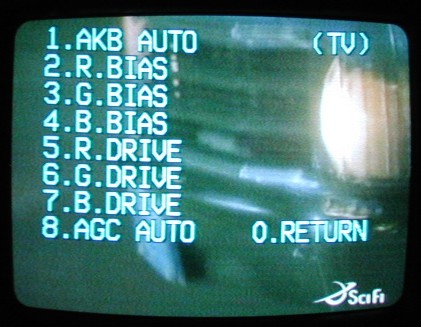

2. AKB (Automatic Cathode Balance)

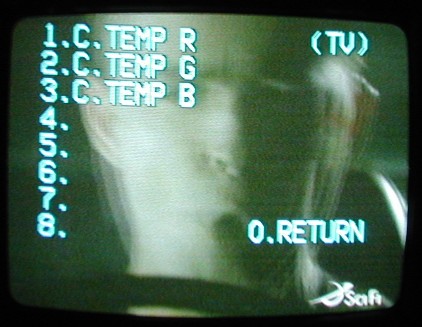

3. Color Temp

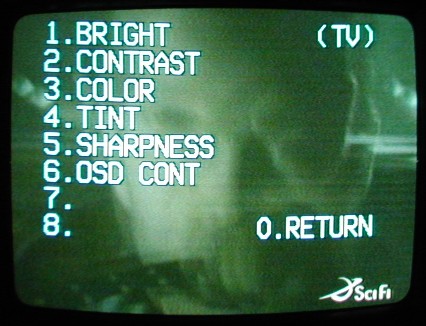

4. Picture

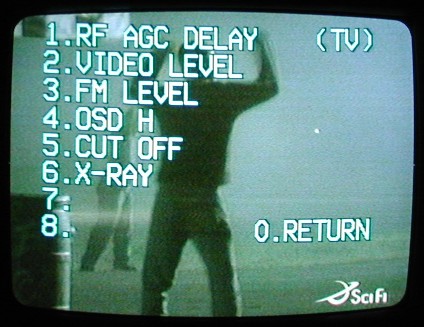

5. Others

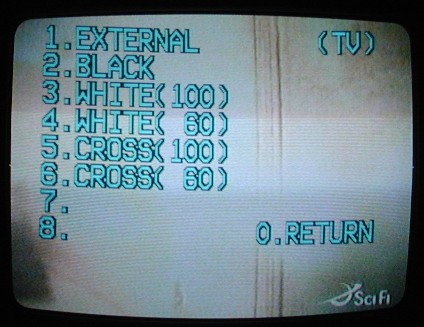

6. Test Pattern

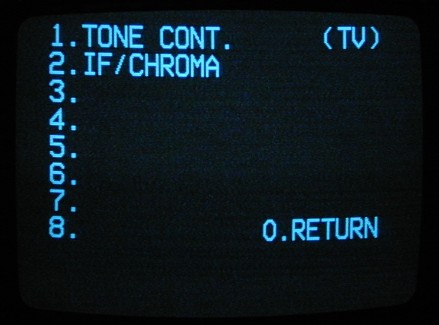

8. Volume Text
Rob
www.hifi-remote.com
Please don't PM me with remote questions, post them in the forums so all the experts can help!
Capn Trips
Expert
Posts: 3989
Joined: Fri Oct 03, 2003 6:56 am

Post by Capn Trips »

:eek: :eek: :eek: Playing with Service Menus on a TV you don't own?!?!?!? :eek: :eek: :eek:

Rob, you're a brave man!

(On second thought - it was only a rental, right? At least it wasn't YOUR :roll: TV!)

But really. Capturing IR codes for JP1 use while on vacation? What - they ran out of tequila at the bar and you had nothing to do? Do you travel around with a 15-1994 in your pocket?
Beginners - Read this thread first
READ BEFORE POSTING or your post will be DELETED!


Remotes: OFA XSight Touch, AR XSight Touch
TVs: LG 65" Smart LED TV; Samsung QN850BF Series - 8K UHD Neo QLED LCD TV
RCVR: Onkyo TX-SR875; Integra DTR 40.3
DVD/VCR: Pioneer DV-400VK (multi-region DVD), Sony BDP-S350 (Blu-ray), Toshiba HD-A3 (HD-DVD), Panasonic AG-W1 (Multi-system VCR);
Laserdisc: Pioneer CLD-D704.
Amazon Firestick
tape deck: Pioneer CT 1380WR (double cassette deck)
(But I still have to get up for my beer)
The Robman
Site Owner
Posts: 21890
Joined: Fri Aug 01, 2003 9:37 am
Location: Chicago, IL
Contact:

Post by The Robman »

Not a 15-1994, it was a URC-8811! :) I originally brought it along for the kids to use with the portable DVD player that I had set up in the van. Then, when one of my kids decided to bring his laptop, I threw in a JP1 cable too.

It turned out to be a good move having the remote available as all the supplied remotes were crap, so the 8811 kept moving from room to room! The other TVs were standard brands (ie, Philips and RCA) and they responded to standard setup codes, so I figured those were all pretty much covered already, but this one set was a Memorex, which I knew meant that it could be a re-badged anything, so I captured it to see what the codes where. I noticed that all of the OBCs were in the range 0-31 with just a couple of gaps, so I created an upgrade and tested the gaps, and the service menu code was one of the gaps. I took the pics of the menus in case anyone else with this set was too scared to try the first EFC code.

The ski hills didn't open until 12 noon, so we would always have lazy mornings lying around playing cards, etc which is dangerous time for an active JP1-er!
Rob
www.hifi-remote.com
Please don't PM me with remote questions, post them in the forums so all the experts can help!
Mark Pierson
Expert
Posts: 3018
Joined: Sun Aug 03, 2003 12:13 am
Location: Connecticut, USA
Contact:

Post by Mark Pierson »

The Robman wrote:The ski hills didn't open until 12 noon, so we would always have lazy mornings lying around playing cards, etc which is dangerous time for an active JP1-er!
"Has anyone seen Dad?..." :eek:
Mark
The Robman
Site Owner
Posts: 21890
Joined: Fri Aug 01, 2003 9:37 am
Location: Chicago, IL
Contact:

Post by The Robman »

Most of the time when we weren't skiing, Casey (my 6 year old) would have me playing Rat-A-Tat Cat with him. It's a new card game that we picked up that he absolutely loves!

Rob
www.hifi-remote.com
Please don't PM me with remote questions, post them in the forums so all the experts can help!
